Quantifying the electric vehicle charging infrastructure gap across U.S. markets

Published: 2019.01.23
‚óŹBy

Michael Nicholas, Dale Hall, Nic Lutsey

This report quantifies the gap in charging infrastructure to power more than 3 million expected electric vehicles by 2025. Based on the expected growth across the 100 most populous U.S. metropolitan areas, we estimate the amount of charging of various types that will be needed to power these vehicles.

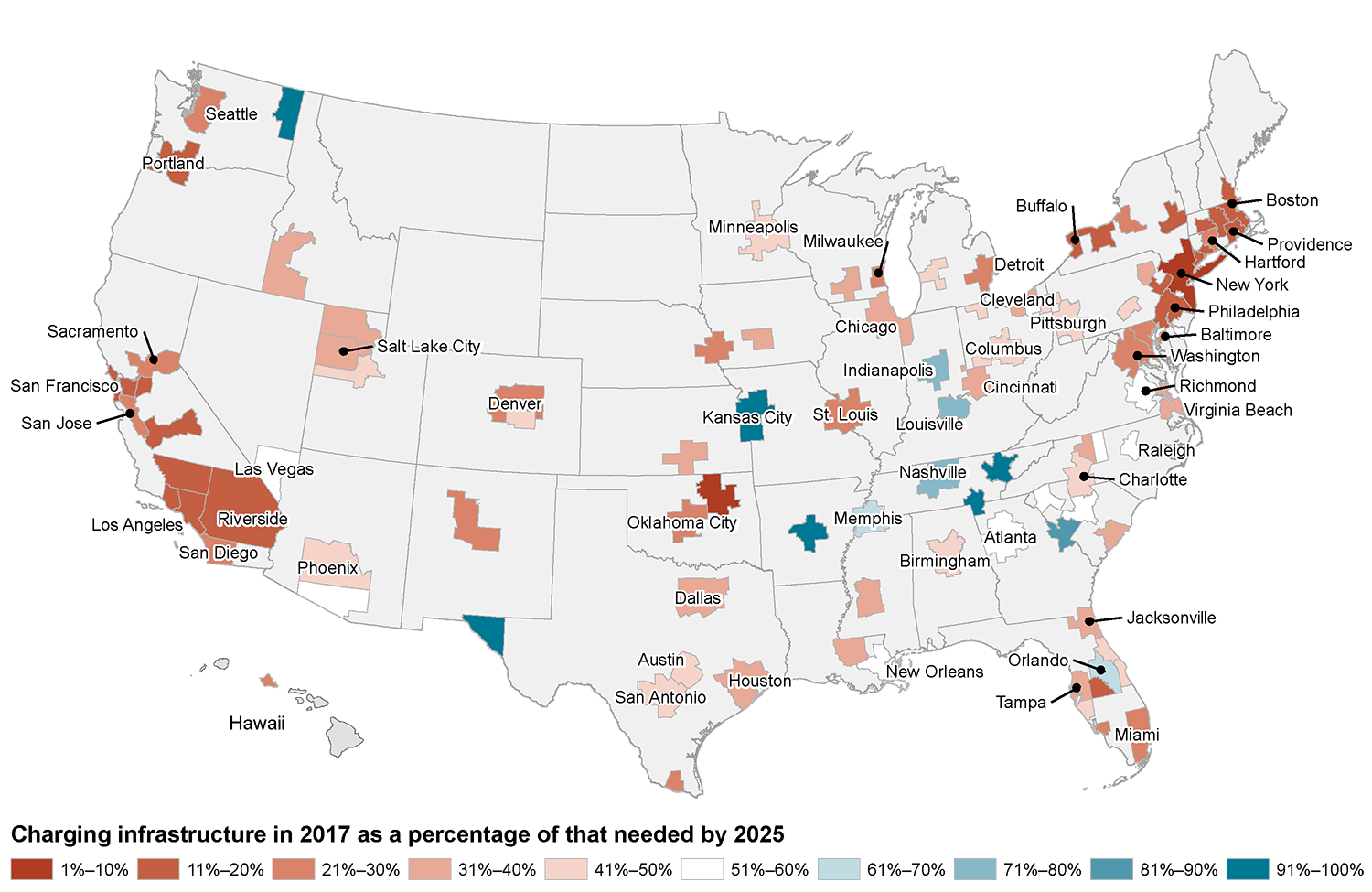

The figure illustrates the deployment of public and workplace charging infrastructure through 2017 as a percentage of what will be needed by 2025 across the 100 most populous U.S. metropolitan areas (the 50 most populous are labeled). Shades of red indicate that less than 50% of the needed charging has been installed through the end of 2017, while blues indicate that more than 50% of charging needed in 2025 was in place by 2017. Of the 100 areas, 88 had less than half of the total needed charging infrastructure in place, based on their expected electric vehicle growth.

charging infrastructure gap in major US metro areas
Figure: Public and workplace charging infrastructure in place in 2017 as a percentage of infrastructure needed by 2025 by metropolitan area

The widespread distribution of electricity offers the potential for highly convenient charging of electric vehicles if the right ecosystem of charging outlets is matched to complex driver charging behavior. While the vast majority of electric vehicle charging is and will continue to be at home, public and workplace charging options allow drivers to take advantage of the times and places where electric vehicles are parked. Our analysis leads us to three high-level conclusions.

Much more charging infrastructure is needed to sustain the transition to electric vehicles. Across major U.S. markets through 2017, about one-fourth of the workplace and public chargers needed by 2025 are in place. Charging infrastructure deployment will have to grow at about 20% per year to meet the 2025 targets identified in this report. The largest charging gaps are in markets where electric vehicle uptake will grow most rapidly, including in many California cities, Boston, New York, Portland, Denver, and Washington, D.C.

Planned infrastructure deployment activities are promising, but uneven. There are many government and industry developments underway to deploy the necessary charging infrastructure, and electric utilities are especially positioned to support this infrastructure deployment. In California and other zero-emission vehicle markets, announced measures and planned installations are slated to fill the charging gaps, but such utility and government efforts are largely absent in much of the country. Cities, states, automakers, and utilities with electric vehicle growth ambitions can learn from these leading markets to fill the charging gaps. Our analysis provides motivation for more policy and more industry investment to expand charging infrastructure in nearly every major U.S. metropolitan area.

Increased charger utilization brings infrastructure investment opportunities. Across U.S. markets where the most charging is needed by 2025, automaker commitments to deploy electric vehicles and the zero-emission vehicle regulation virtually assure increasing electric vehicle uptake. In addition, market expansion, economies of scale, and improved charging technologies will promote higher utilization of chargers. The number of electric vehicles supported by each charger is anticipated to increase by 35% for public Level 2 and 65% for fast chargers by 2025. This analysis suggests that automakers, utilities, and charging providers in many U.S. cities could make low-risk, high-utilization investments to meet the needs of expected electric vehicle deployments.
